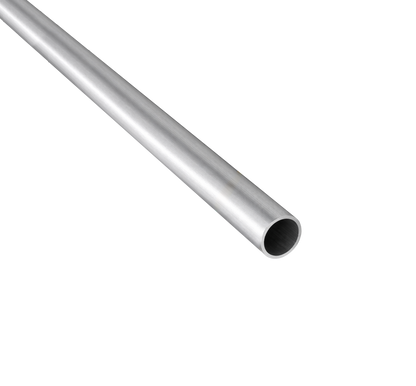

Aluminium Tube 3/16" x 210mm

Aluminium Tubing for Small-Scale Armatures

Our 3/16" aluminium tube is an essential, lightweight component for stop-motion animators and precision model makers. The tube offers the perfect structural solution for smaller character builds or delicate upper-body sections of larger puppets.

With a thin 0.016" wall thickness, this tubing provides rigidity where you need it while keeping the overall mass of your model at a minimum, which is a critical factor for successful frame-by-frame animation.

The Ideal Fit for Twisted Wire

Precision fit is the name of the game when it comes to model making metals and this 210mm length is a staple in professional armature construction:

• Twisted Wire: This 3/16" diameter is the perfect size for 2 strands of our 2mm Animation Wire. It will also work well with multiple strands of our 1mm Aluminium Wire. Use the tubes to create rigid "bones" for thin arms or cut to use as inset tubes like we use in our Aluminium Armature Kits.

• Maximum Weight Control: Because it is so lightweight, Aluminium Tubing is the go-to choice for preventing "top-heavy" puppets, ensuring your character remains stable throughout the entire animation process.

Technical Specifications:

• Diameter: 3/16" (approx. 4.76mm)

• Wall Thickness: 0.016" (approx. 0.41mm)

• Length: 210mm

• Material: Professional-grade, lightweight aluminium.

• Direct Compatibility: Ideal for adding "bones" to the arms of our Aluminium Armature Kits.
